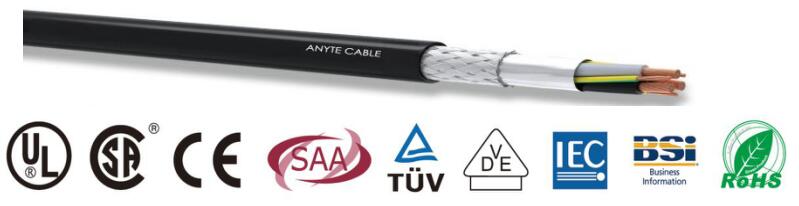

0.6/1KV Variable frequency drive cable 3+3Structural composite cable

Structure

Conductor: Multiple strands of fine oxygen-free bare copper wire.Complies with IEC60228, Class 5

Insulation: Cross-linked polyethylene (XLPE)

Colored cores,ground wire in yellow/green.

construction: optimized structure of the pair stranded gaps with filler.

copper tape or braided shielding.

Sheath material: special PVC mix

Sheath color: black or gray (can be customized)

Characteristic

No hazardous substances, RoHS or REACH compliant

Conforms to CE/TUV standards, etc.

Low capacitance, low coupling resistance

anti-electromagnetic interference applications

Performance

Operating voltage: 0.6/1kV

Minimum bending radius:

Mobile installation: 15x cable OD

Fixed installation: 4x cable OD

Operating temperature range:

   Mobile installation: -5°C to +70°C

   Fixed installation: -40°C to +80°C
