Cold resistant -40℃+105℃ PVC Cable

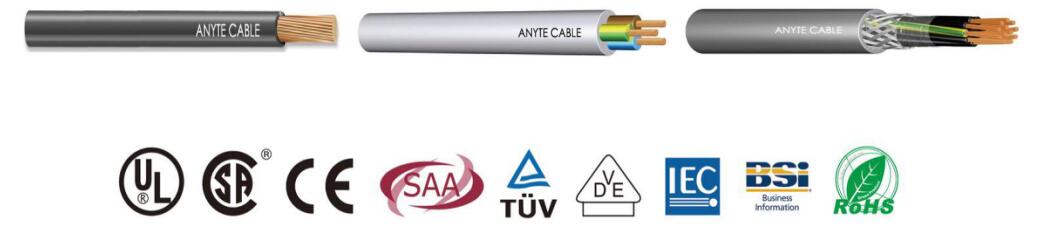

Structure
Single core:customizable cross-section 0.3-240mm²)
Compliant with VDE0295 / IEC228 Class 5, stranded fine stranded copper wire conductor
Special cold-resistant PVC mixed core insulation
Multi-core unshielded: (2-63 core can be customized, cross-section 0.3-240mm²)
Compliant with VDE0295 / IEC228 Class 5,stranded copper wire conductor
Special cold-resistant PVC mixed core insulation
Stranded composite cable
Special cold-resistant PVC mixture outer sheath
Multi-core shielding: (2-63 core can be customized, cross-section 0.3-240mm²)
Compliant with VDE0295 / IEC228 Class 5, stranded fine stranded copper wire conductor
Special cold-resistant PVC mixed core insulation
Insulated plastic film coating
 (Tinned) copper wire shield braid, coverage rate is 85%
Special cold-resistant PVC mixture outer sheath
Characteristic
Performance
Operating Voltage:
Single core: 1.0mm2 and below: 300 / 500V
1.5mm2 and above: 450 / 750V
Test voltage: 2KV-2.5KV

Multi-core: 0.3mm² and below: 300V
           0.5-6mm²: 300 / 500V
           10mm² and above: 600 / 1KV
Test voltage: 2KV-3KV

Insulation resistance: 20 MOhm x cm
Minimum bending radius: 7.5x cable outer diameter
Operating temperature range: -40 ℃ + 105 ℃
