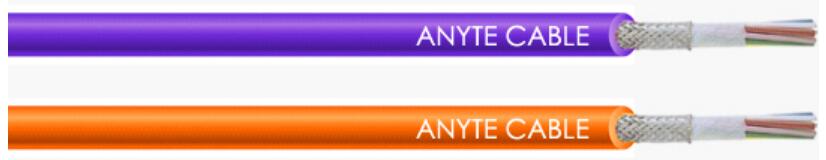

ANYDATA-INTER-BUS-PUR Wear resistant remote INTERBUS cable

Structure

Conductor Stranded of fine copper wire (class 6) comply with VDE0295/IEC228 standard.

Insulation material: Special PE mixed with highly mechanical properties

Cores twisted lay together, nonwovens or PET tape covered

Tinned copper wire braiding with highly bending resistant, 85 % coverage.

outer sheath: Special PUR mixture ,normal color is in purple .

Characteristic

Particularly oil chemical resistance of the cores twisted in the best pitch to Minimize the crosstalk

Particular oil resistant, chemistry resistant, Non-adhesive, high abrasion and tear resistant.

High-density braided shield to guarantee the transmission freely for the signal and pulse

Non-hazardous substances, RoHS compliant
In accordance with EEC 73/23 and CE/TUV/VDE standard.

Flame retardant properties comply with the provisions of the IEC 60332-1

ANYDATA-INTER-BUS-PUR series design of ANYDATA can cycles bending for about 100 million times in the chain system .

Performance

Operating voltage: 350V maximum
Insulation resistance:> 20 MOhm x km
Minimum bend radius: 7.5x cable outer diameter
Operating Temperature Range: Movable installation: - 5 ° C to +90 ° C fixed installation: -30 ° C to +90 ° C
Wire grounding ID: G = green / yellow protective conductor X =without green / yellow protective conductor
Radiation intensity: Up to 5 × 107cJ/kg
0.064 MHz Impedance: 120 Ω ± 20%
> 1 MHz Impedance: 100 Ω ± 15 Ω
