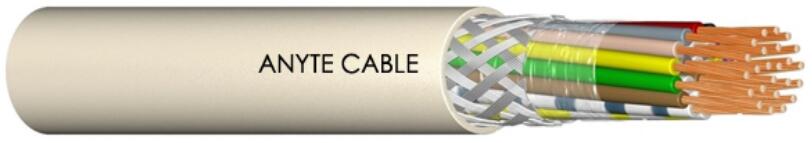

ANYDATA-LiYCY PVC insulated braid shield flexible control cable

Conductor Stranded of fine copper wire (class 5)comply with VDE0295/IEC60228 standard.

Insulation: Special PVC mixture material.

color-coded cores in accordance to DIN47100 (can be customized colors)
Plastic film coated overall
(Tinned) copper shielding braid coverage of 85%
outer sheath: Special PVC mixture material

Gray (RAL7032) (color can be customized according to customer requirements)

Particularly oil, chemical resistance, high flexibility

Shield in high-density to ensure free transmission for all signal and pulse interference

Small diameter to save installation space for the cable

Non-hazardous substances, RoHS compliant
This product complies with the provisions of the EEC directive 73/23 (low-voltage procedures)the CE
Comply with the CE / TUV / VDE standards

Operating voltage: 250V
Insulation resistance:> 20 MOhm x km
Minimum bend radius: movable installation, 15x cable outer diameter, fixed installation 6x cable outer diameter
Operating Temperature Range: Movable installation: - 5 ° C to +70 ° C fixed installation: -30 ° C to +80 ° C
Flame-retardant characteristics: PVC self-extinguishing and flame retardant to meet IEC60332-1 specified in
Anti-radiation intensity: up to 80 × 106cJ/kg
