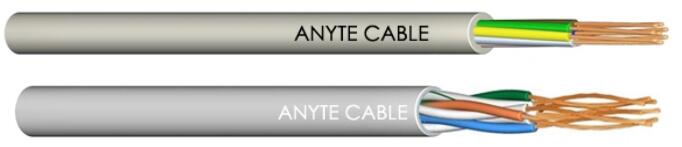

ANYDATA-LSZH-LiHH/LiHH-TP LSZH data control cable

Conductor Stranded of fine copper wire (class 5) comply with VDE0295/IEC228 standard.

Insulation: Halogen-free compound material, low smoke zero halogen  insulated cores according to DIN VDE 0 281
Colors according to customer requirements (insulation can be customized to pair twisted form of TP)
 Plastic film or non-woven overall coated wire
Halogen-free jacket compound, according to DINVDE 0 281 (color can be customized according to customer requirements)

Combustion of low smoke, do not produce toxic substances, the maximum guarantee of human life safety, and resistance to hydrolysis
Low index of smoke acid, low toxicity index, low concentration of smoke, retardant, RoHS compliant
The wire can be twisted to reduce electrical interference within the cable
Non-hazardous substances, comply with RoHS standard
This product complies with the CE provisions of the EEC directive 73/23 (low-voltage procedures)
Comply with the CE / TUV / VDE standards

Rated voltage: 250V
Test Voltage: 3000V
Operating temperature: -30 ~ + 80 ° C
Minimum bend radius: 7.5 x cable diameter
