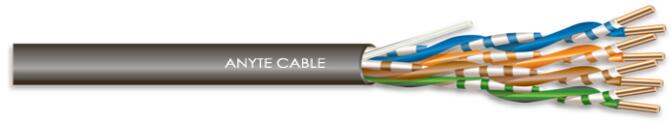

ANYDATA-UTP CAT5e LAN CABLE UTP CAT5e

Structure

Conductor: Solid or stranded with 7 pieces (tinned) copper wire

Meet the UL444 standard HDPE polyethylene insulated
Two-cores twisted pair, total of four pairs
Special PVC outer sheath, or a higher standard of low smoke zero halogen flame retardant outer sheath (optional materials can be customized colors)

Characteristic

Comply with UL758, UL1581, UL444, TIA/EIA-568, CSA C22.2, the ISO / IEC 11801 and other standards
Transmission frequency reach 100MHz, and support for duplex applications
Environmental RoHS compliant
Pass UL VW-1 & CSA FT1 vertical flame test, CM rating

Performance

Operating voltage: 30V
Operating temperature range:
Movable Installation: - 5 ° C to +80 ° C fixed installation: -40 ° C to +80 ° C
Flammability rating: IEC60332-1 CM
DC Resistance at 20 ℃ (Ω / KM) <93.8
Operating Temperature 70 ℃
68% of the propagation velocity
Impedance (ohms) 100 ± 15
Flame Propagation Test to IEC 60332 Part 1 (LSOH) Flame Propagation Test to IEC 60332 Part 1 and Part III (LSFROH) halogen acid gas emissions in line with the IEC 60754, Part 1
Smoke emission test according to IEC 61 034
