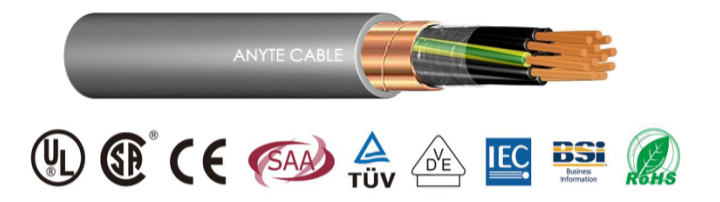

ANYCERT-SAA-AS/NZS 5000.1-0.6/1KV-SRCP Multi cores PVC Shield/armoured Power Cable

Structure

Conductor, Class 1, Class 2 or Class 5 copper wire according to AS/NZS1125

Insulated to AS/NZS 3808, PVC V90

Shielded(tinned) copper wire with 85% coverage

Various types of armor shields can also be customized

Conforms to AS/NZS 3808 standard sheath, PVC 5V-90



Operating voltage: 0.6/1kV

Flame retardant : IEC 60332.1

Characteristic

Environmentally protect materials, no harmful substances, in compliance with RoHS or REACH directives

SAA certified cable for use in Australia, New Zealand.

Performance

Minimum bending radius:

 Mobile installation: 15x cable OD

Fixed installation: 4x cable OD

Operating temperature range:

Mobile installation: -5°C to +90°C

Fixed installation: -40°C to +90°C
