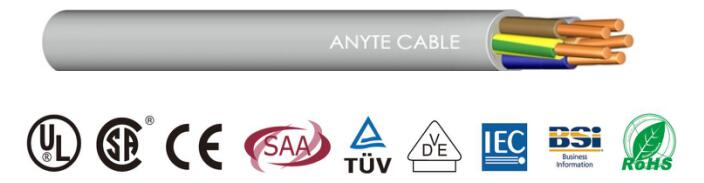

ANYCERT-SAA-AS/NZS 5000.3-450/750V-CR Multi cores PVC/PVC Control Cable

Structure

Conductor, Class 1, Class 2 or Class 5 copper wire according to AS/NZS1125
Insulated to AS/NZS 3808, PVC V90
Conforms to AS/NZS 3808 standard sheath, PVC 5V-90

Operating voltage: 450/750V
Flame retardant : IEC 60332.1

Characteristic

Environmentally protect materials, no harmful substances, in compliance with RoHS or REACH directives
SAA certified cable for use in Australia, New Zealand.

Performance

Minimum bending radius:
Mobile installation: 15x cable OD
Fixed installation: 4x cable OD
Operating temperature range:
Mobile installation: -5°C to +90°C
Fixed installation: -40°C to +90°C
