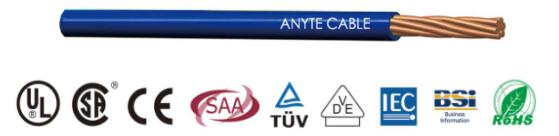

ANYCERT-CE-H05Z-R/H07Z-R Single core LSZH Electric Wire

Structure

Compliant with VDE0295.IEC60228
Single solid conductor (tinned) copper wire.
Low-smoke halogen-free LSZH insulation.

Characteristic

No toxic gas will be generated during the combustion process, comply with EN60754.In case of fire, low smoke density complies with EN61034
Using environmentally materials,complies with European CE standards

Performance

Working voltage：05:300/500V，07:450/750V
Minimum bending radius: mobile installation: 15x cable outer diameter
Fixed installation: 4x cable outer diameter
Operating temperature range:
mobile installation: -5 ℃ to + 90 ℃
Fixed installation: -40 ℃ to + 90 ℃
