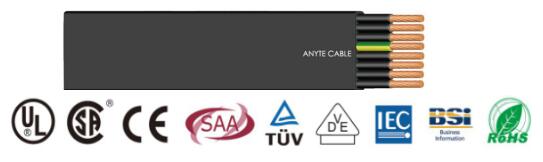

ANYCERT-CE-H05VVH6-F/H07VVH6-F PVC Flat Power Cable

Structure

Compliant with VDE0295. IEC60228 fine stranded (tinned) copper wire
Meets VDE 0281.HD 21.5 & IEC 60227 polyvinyl chloride PVC insulation
Cores arranged in parallel
Complies with VDE 0281.HD 21.5 & IEC 60227 polyvinyl chloride PVC sheath

Characteristic

Reduced size means more space savings than round cables
Has a smaller bending radius than round cables.
The horizontal discharge of the core wire will not cause the phenomenon that the cables are twisted together.

Performance

Working voltage: 450 / 750V
Minimum bending radius:
Mobile installation: 1 5x cable outer diameter
Fixed installation: 4x cable outer diameter
Operating temperature range:
Mobile installation: -5 ℃ to + 70 ℃
Fixed installation: -40 ℃ to + 70 ℃
Flame retardant: IEC 60332-1-2
