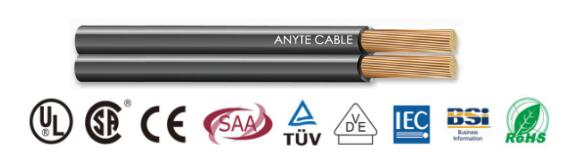

ANYCERT-CE-H03VH-H H03VH-H PVC insulated flexible parallel Cable

Structure

Compliant with VDE0295. IEC60228 fine stranded (tinned) copper wire
polyvinyl chloride PVC insulation
The core wires are arranged independently and in parallel

Characteristic

Using environmentally protect materials, in line with ROHS directive
Complies with European CE standards.

Performance

Working voltage: 300/300 V
Minimum bending radius: 6x cable outer diameter
Operating temperature range:
Mobile installation: -5 ℃ to + 70 ℃
Fixed installation: -40 ℃ to + 70 ℃
Flame retardant: IEC 60332-1-2

PDF DOWNLOAD
