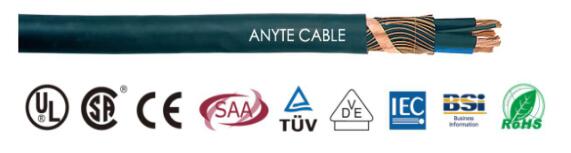

ANYCERT-CE NYCWY Shield Power Cable
Structure
Complies with VDE0295 / IEC228 Class 1 or Class 2 conductor
PVC insulation,Color coding: 1-5 cores according to VDE 0293,numbered core for 6 cores and above,with inner sheath
The ring-shaped copper wire is concentrically twisted, and the outer layer is covered with copper ribbon
PVC outer sheath
Characteristic
Rated voltage: 0.6 / 1 KV
Test voltage: 4000V
Minimum bending radius: single core 15 × cable outer diameter
Multi-core 12 × cable outer diameter
Temperature range: Mobile installation: -5 ℃ to + 50 ℃
Fixed installation: -40 ℃ to + 70 ℃
Flame retardant: IEC 60332.1
No harmful substances, RoHS compliant
Comply with CE / TUV and other standards
Performance
r = round conductor shape s = sector conductor shape
e = Single core conductor / No. 1 conductor in accordance with IEC 60228 / VDE 0295
m = Multi-core conductor / Class 2 conductor according to IEC 60228 / VDE 0295
