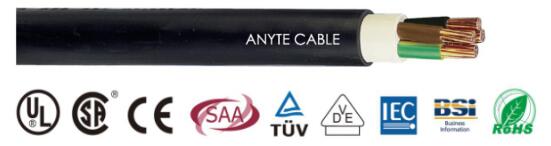

ANYCERT-CE N2XY XLPE Power Cable

Structure

Conductors in accordance with VDE0295/IEC228, Class 1 or Class 2
XLPE insulation,With inner sheath
PVC outer sheath
(Customizable low-smoke, halogen-free LSZH sheath, model number: N2XH)

Characteristic

chemical resistance
flame retardant
No hazardous substances, RoHS compliant
Conforms to CE etc. standards

Performance

Rated voltage: 0.6/1 KV
Test voltage: 4000V
Minimum bending radius: single core 15 x cable outside diameter
Multi-core 12× cable outer diameter
Temperature range: mobile installation: -5°C to +50°C
Fixed installation: -40°C to +70°C
Flame retardant: IEC 60332.1
r=round conductor shape s=fan conductor shape
e=Single conductor/Lead 1 conductor in accordance with IEC 60228/VDE 0295
