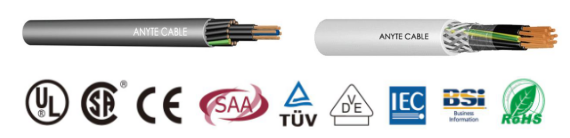

ANYCERT- UL/CUL/CSA AWM/MTW UL 2586 PVC Power Cable

Structure
Stranded strands of fine bare copper wire conductors
PVC mixed core wire insulation (color can be customized according to customer requirements)
Stranded composite cable
   * Insulated plastic film coating or special PVC mixture inner sheath
   * (Tinned) copper wire shield braid, coverage rate up to 85%
PVC mixture outer sheath (color can be customized according to customer requirements)
Tick * for optional structure
Characteristic
Flexible, small bending radius, flame retardant
Special heat-resistant PVC insulation up to 105 ℃
AWM standard complies with UL758, UL1581
The MTW standard complies with:
UL1063, UL83, ANSI / NFPA70, NFPA79, National Electrical Code, NEC level and national electrical regulations, "Electrical Standard for Industrial Machinery and Electrical Standard Industrial Machinery
Performance
Rated temperature: 90 ℃
Working voltage: 600V
Oil resistance, flame retardant: CSA FT1 and UL
