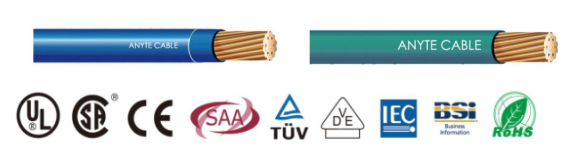

ANYCERT-T90 Nylon, TW, TW75, TWN75, TWU, TWU75
Structure
T-90 NYLON,-WN75:
Single or multiple stranded of 14-2 / OAWG bare copper wire in accordance with ASTM-B3 / B8
High dielectric strength flame retardant PVC insulation.
Nylon covered insulating outer layer conforming to UL1581
Three-core or above cores are filled with fillers, and nylon tearing rope is added to the inside of the outer sheath.
Sun protection in accordance with UL1277
TW, TWU:
Single or multiple stranded of 14-2 / OAWG bare copper wire in accordance with ASTM-B3 / B8
Comply with UL1581 flame retardant PVC insulation
Characteristic
Excellent safety performance such as good heat resistance.
It is harmless to the surrounding environment, RoHS material, and is the power supply and lighting wire for home decoration equipment.
The cable has high mechanical strength and excellent wear resistance, cold resistance, surface hardness, bending strength, strong impact, chemical resistance, oil resistance, gasoline resistance and self-lubricity
Performance
Rated voltage：600V
T-90NYLON -Single core PVC/Nylon Electric wire,90℃ dry environment.
TWN75 -Single core PVC/Nylon Electric wire,75℃ dry or wet environment.
TW，TWU -Single core PVC/Nylon Electric wire,60℃ dry or wet environment.
