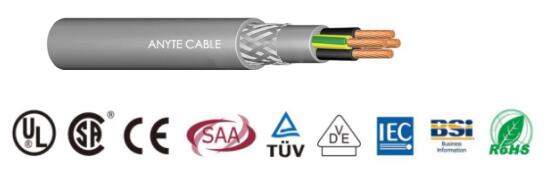

ANYFLEX-OPVC-YCY-OZ/JZ OPVC multi cores shield double jacket oil resistant control cable

Structure
Compliant with VDE0295 / IEC228 Class 5, stranded fine stranded copper wire conductor
Special grease-resistant OPVC mixture core wire insulation
Black core wire white digital number / VDE0293-308 new color code
(The color can be customized according to customer requirements)
Stranded composite cable
Characteristic
The performance of the product's anti-corrosive grease (HD 21.1.S3) has been repeatedly tested by the laboratory
High weaving density and low transfer impedance to prevent pulse interference
Minimize external interference during signal transmission
No harmful substances, RoHS compliant
Comply with CE / TUV and other standards
Performance
Working voltage: 300/500 V
Insulation resistance:> 20 MOhm x Km
Minimum bending radius:
 mobile installation: 20x cable outer diameter
Fixed installation: 6x outer diameter of cable
Operating temperature range:
mobile installation: -5 ℃ to + 70 ℃
Fixed installation: -40 ℃ to + 80 ℃
