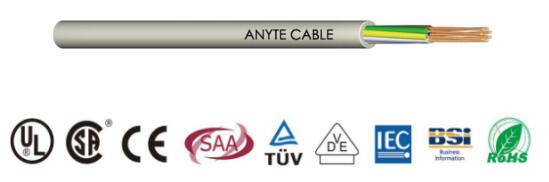

ANYFLEX-POWER-PVC PVC multi cores power cable -0.6/1KV

Structure
Compliant with VDE0295 / IEC228 Class 5, stranded fine stranded copper wire conductor
Special PVC mixed core wire insulation (color can be customized according to customer requirements)
Stranded composite cable
Special PVC mixture outer sheath (color can be customized according to customer requirements)
Characteristic
Meet strict electrical and mechanical performance requirements
Excellent resistance to acids, alkalis and grease at room temperature
No harmful substances, RoHS compliant
Performance
Working voltage: 300 / 500V
Insulation resistance:> 20MOhmxKM
Minimum bending radius:
 mobile installation: 20x cable outer diameter
Fixed installation: 6x outer diameter of cable
Operating temperature range:
 Mobile installation: -40 ℃ to + 80 ℃
Fixed installation: -50 ℃ to + 90 ℃
Radiation resistance: up to 100 × 106cJ / kg
